FTTH 18mm Cable Fiber Optic Splice Closure IP67 96cores

Name: FTTH 18mm Cable Fiber Optic Splice Closure IP67 96cores
Brand: CSYHT
Price: 1 USD

Wholesale FTTH 18mm Cable Fiber Optic Splice Closure IP67 96cores from china suppliers

Brand Name : CSYHT

Model Number : CV003

Certification : CE, ISO, RoHS

Place of Origin : China

MOQ : 50pcs

Payment Terms : T/T

Supply Ability : 300pcs/day

Delivery Time : 10days

Packaging Details : Carton

Product Name : 96 Core Fiber Optic Closure

Material : ABS plastic

Cable diameter : Ф7-Ф18mm

Cable entry ports : 3 in & 3 out

Dimension : Φ170.5*441mm

Closure sealing structure : Mechanical sealing

Contact Now

Fiber optic splice closure Dome 96cores FTTH Fiber Optic Joint Closure 18mm Cable

Description:

Fiber optic splice closure Dome 96cores FTTH Fiber Optic Joint Closure 18mm Cable CV003 provide 6 fiber cable in-out round ports for the diameter Ф7-Ф18mm optical cable in and out. It is used for splicing and protecting optical cables.

This product is made of ABS and sealed by silicon rubber and mechanical sealing structure filled with the sealing material. The external component and fastening piece are all made of the high-quality iron. It can be opened after sealing.

Application:

Aerial -hanger, Wall-mounting, Pole mounted

Specification:

Dimension / Weight	Φ170.5*441mm / 1.8Kg
Cable diameter	Ф7-Ф18mm
Cable entry ports	3 in & 3 out
Max. splice tray / Max. Capacity	5 (12core/tray, 24core/tray duplex) / 120core
Cable port sealing structure	Slealing rubber & Nut lock
Closure sealing structure	Mechanical sealing
Water proof grade	IP67
Packing size(cm) / Weight	624741(6PCS) / 17Kg(6PCS)

Components:

Splice protector sleeve(60mm)

Sticky cincture:1 pc

Sealing washer(rubber):1 pc

Plug for cable port (rubber):6 pcs

Hanging hook:1 set

FTTH 18mm Cable Fiber Optic Splice Closure IP67 96cores

Product Tags:

18mm Cable Fiber Optic Splice Closure

Fiber Optic Splice Closure IP67

96cores Dome Joint Closure

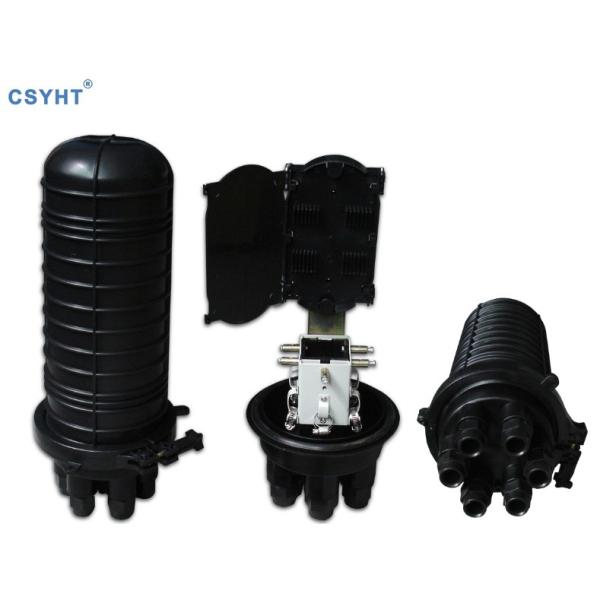

FTTH 18mm Cable Fiber Optic Splice Closure IP67 96cores Images
