288FO 19" Sliding Optical Distribution Cabinet APC Adapters

Name: 288FO 19quot Sliding Optical Distribution Cabinet APC Adapters
Brand: CSYHT / OEM
Price: 13 USD

Wholesale 288FO 19" Sliding Optical Distribution Cabinet APC Adapters from china suppliers

Brand Name : CSYHT / OEM

Model Number : ODF-AR48/72/96/144

Certification : ISO ROHS CE PONY

Place of Origin : CHINA

MOQ : 50 Pieces

Price : USD 13-50/Piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 2000 Pieces / Day

Delivery Time : 5-8 workdays

Packaging Details : Individual Box & Outer Carton or According to client's request

Product Name : 19" Sliding Optical Distribution Frame Cabinet ODF with 48 72 96 144 LC/APC SC/APC Adapters Pigtails

Type : Indoor Sliding Rack Mount Type

Splice Tray : 4-12

Color : Black, White, Grey

Dimension : 430*290*3U/4U/5U/7U mm

Cable Port : 4 cable ports

Material : Cold roll steel

Splicing Capacity : Max. 288FO

Adapter Port : 144 SC Simplex adapter ports

Splitter Type : NO

Thickness : 1.2mm

Contact Now

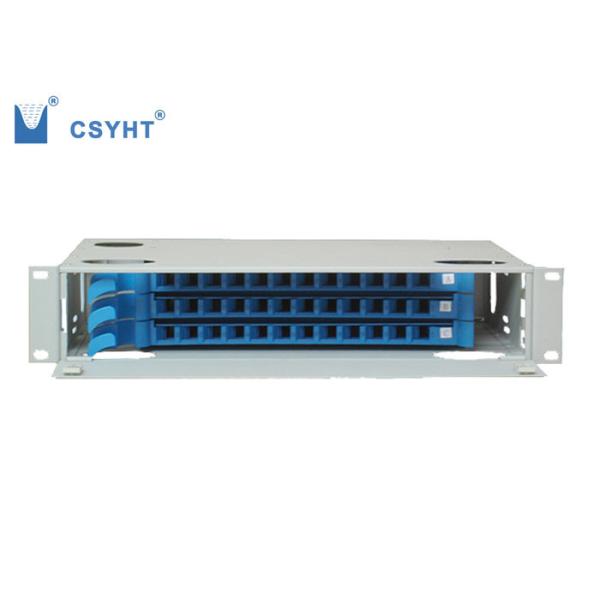

19" Sliding Optical Distribution Cabinet SC/APC Adapters rack mount panel

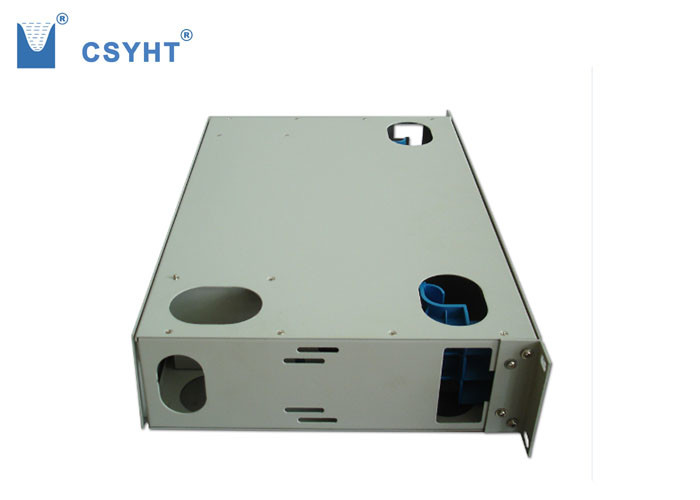

It is modulized design with plastic drawable trays inside and made of cold-rolled steel. It could be pre-installed with various kinds of fiber optic adapters and pigtails.

It is with standard 19 inch size and properly designed to control the bend radius of the cable inside the enclosure to avoid extra optical loss. This frame is ideal for indoor fiber optic cables connection storage, distribution and management.

Features:

Modular design with splicing and distribution function

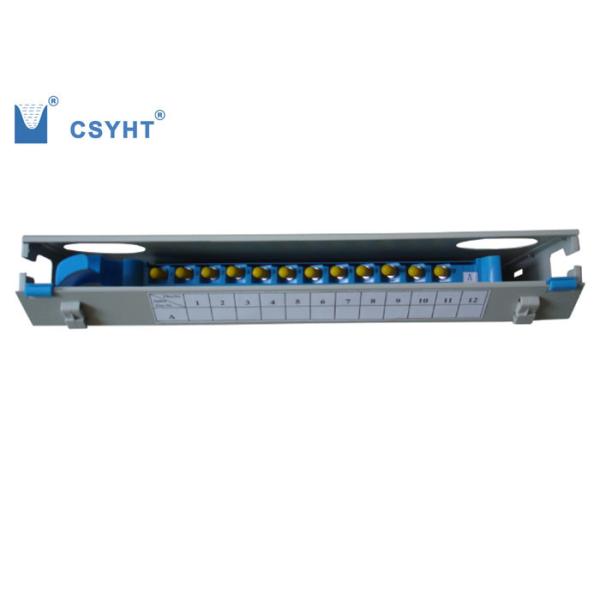

Splice tray inside changeable
Standard size, can be used in 19'', 23'' standard distribution frame
Suitable for SC, FC, ST, LC adapters
Front mark on the plate is easy for identification and operation
Max. capacity 144cores
Front door and rear door for front and rear access

Application:

Telecommunications

Fiber to the home (FTTH)

LAN/WAN

CATV

Specification

Model	Core Count	Height	Dimension(mm)	Weight(kg)
ODF-R144	144	7.2U	430x280x322	17.1
ODF-R96	96	5U	430x280x222	11
ODF-R72	72	4U	430x290x175	9
ODF-R48	48	3U	430x290x129	7
ODF-R36	36	2U	430x290x89	5.7
ODF-R24	24	2U	430x290x44.5	4.6
