ABS 12fibers PLC IP65 9SC Fiber Optic Splice Closure

Product Categories

Shenzhen YHT Broadband Equipment Co. Ltd

Contact Now

ABS 12fibers PLC IP65 9SC Fiber Optic Splice Closure

Name: ABS 12fibers PLC IP65 9SC Fiber Optic Splice Closure
Brand: CSYHT
Price: 7.5 USD

Wholesale ABS 12fibers PLC IP65 9SC Fiber Optic Splice Closure from china suppliers

Brand Name : CSYHT

Model Number : P040

Place of Origin : CHINA

MOQ : 100

Price : 7.5

Supply Ability : 5000pcs/week

Delivery Time : 7 working days

Packaging Details : carton + pallet

Material : ABS material

Color : black

Capacity : 12fibers

Splice tray : 1pc OST-050 splice tray

IP Standard : IP65

Sealing structure : Mechanical sealing

Cable ports : 4 entry cable port for φ6-φ8mm diameter cable in and out

Application : outdoor aerial hanged

Size : 283.2*161.5*80.8mm

Adapter : 9SC simplex adapters on PLC cassette

PLC : Available for PLC 1X8

Contact Now

Description:

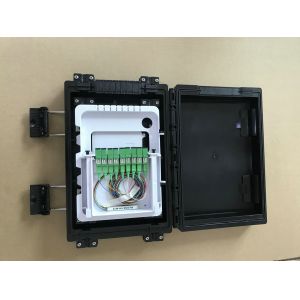

Fiber optic terminal box OTB-P040is a plastic box that can load 1pc spliter cassette 1x8 and with 1pc OST-050 fiber optic splice tray for fiber splicing, connection and distribution.

Features:

Material: ABS plastic
Mechanical sealing structure, IP65
12 fibers, 1pc OST-050 splice tray
Outdoor aerial hanged application
4 entry cable port for φ6-φ8mm diameter cable in and out,8 cable port for FTTH drop cable
Support cable entry without cutting

Specification:

Model	Dimension	Material	Splice tray Qty	Max.capacity	Cable ports
OTB-P040	283.2161.580.8mm	ABS + UV	1PC Max.	12fibers / 1X8 PLC	4 entry cable port for φ6-φ8mm diameter cable in and out,8 cable port for FTTH drop cable

Accessories:

Item	Name	Specification	Qty
1	Heat shrinkable protection sleeve	45MM2.61.2mm	As per capacity
2	Cable tie	3mm*120mm / white	4pcs
3	Aerial hanged kit	OTB-P038-030 / stainless steel	2pcs

Details:

ABS 12fibers PLC IP65 9SC Fiber Optic Splice Closure

Product Tags:

9SC Fiber Optic Splice Closure

IP65 Fiber Optic Splice Closure

12fibers Inline Optic Closure
