PP Plastic 288 Core IP68 Dome Fiber Optic Vertical Closure

Product Categories

Shenzhen YHT Broadband Equipment Co. Ltd

Contact Now

Name: PP Plastic 288 Core IP68 Dome Fiber Optic Vertical Closure
Brand: CSYHT
Price: 43 USD

Brand Name : CSYHT

Model Number : CV026

Place of Origin : CHINA

MOQ : 100

Price : 43

Supply Ability : 5000pcs/week

Delivery Time : 7 working days

Packaging Details : carton + pallet

Material : Impact resistant PP material

Color : black

Capacity : 288fibers

Splice tray : max 24pcs tray .each tray 12fibers

IP Standard : IP68

Sealing structure : heat shrinkable sealing

Cable ports : 16 round cable ports (4pcs Φ18mm,4pcs Φ20mm and 8pcs Φ26mm) 1 oval cable ports

Application : outdoor wall mounted, pole mounted, aerial hanged, direct buried, duct

Size : φ200.6*393.1mm

Adapter : max 18 pcs SC simplex adpaters

PLC : Available for PLC 1X8 or 1x16

Contact Now

Description:

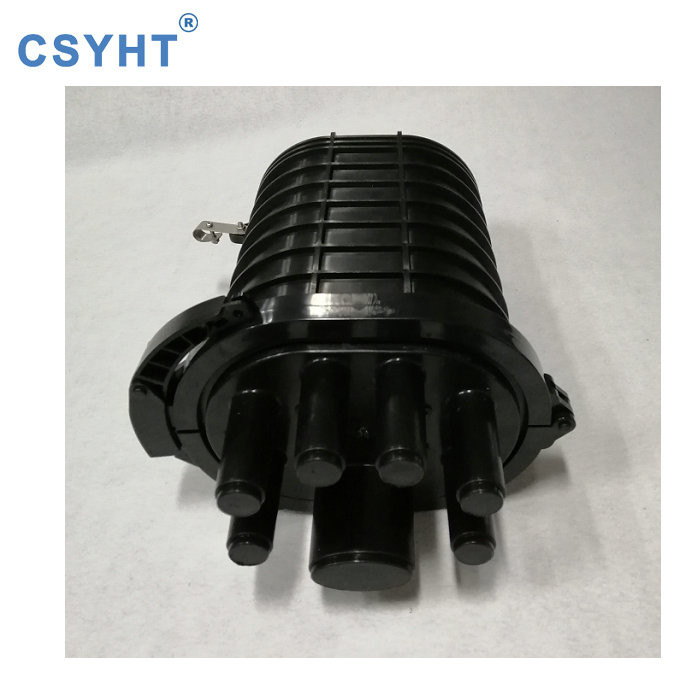

CV026 is an oval dome type fiber optic splice closure that support fiber splicing and protection. It is waterproof and

dust proof and suitable for outdoor aerial hanged, pole mounted, wall mounted, duct or buried application.

Features:

Impact resistant PP material, black color
Mechanical sealing structure, IP68
Max. 12pcs OS-061 fiber optic splice tray, max. 288 fibers
Can load max. 18pcs SC simplex adapters
Two splitter space for PLC 1x8, 1x16
6 round cable port 18mm, 2 cable port 18mm support cable entry without cutting
Working temperature-35℃~70℃, cold and heat resistance, electrical insulation, corrosion resistance.
Support wall mounted, pole mounted, aerial hanged, direct buried.

Specification:

Model	Dimension	Material	Splice tray Qty	Max.capacity	Cable ports
CV026	φ200.6*393.1mm	PP plastic	24pcs Max.	288 fibers	6 round cable port 18mm, 2 cable port 18mm support cable entry without cutting

Details:

Product Tags:

IP68 Fiber Optic Vertical Closure
