19 Inch 4U Pull Out Fiber Optic Distribution Box ODF 96 Fibers

European Market 19 inch 4U 96 fibers Pull Out Fiber Optic distribution box ODF
Model Number: ODF-RS-0248

Describtion:
It is with nice structure for the protective connection inside of:

(1) Loose tube optical cables or bundled pigtails & patch cords,

(2) Branch optical cables & patch cords

(3) Steel tube type PLC splitters & patch cords

(4) Patch cords & patch cords

Specification:
(1) Material of cold roll steel, black color, or grey white color optional.
(2) The front door is with a hinge, a flip-type structure with elastic door buckle locking method.
(3) Metal sliding pull-out splice tray cassette, stainless steel limit buckle on the side and limit belt on the back to ensure high reliability.
(4) High-quality plastic of fiber splice stray, and fiber splicing module, fiber arrangement module, fiber optical adapter panel.
(5) The splice tray is installed on a stepped bracket, which can be superimposed according to the number of U.

There are supporting members on the side of the tray, which can be flipped, easy to do splice connection management work.
(6) Horn-shaped fiber outlet ears on both sides of the box, for well protective fiber cables and pigtails.
(7) 19" and 21" cabinet or rack installation.

Pictures:

Fiber Arrangement Figure:
1 Break-out cables in & fiber patch cords out

2 PLC splitter in & fiber patch cords out

3 Fiber patch cords in & fiber patch cords out

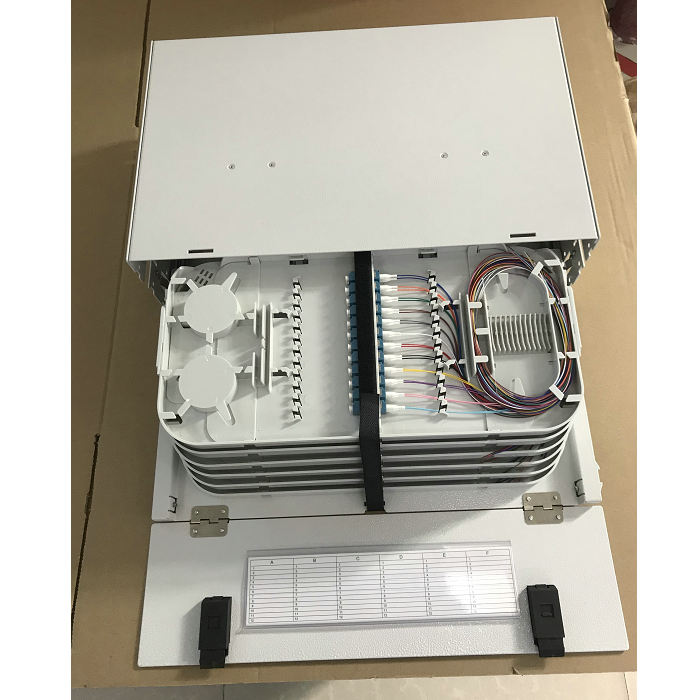

19 Inch 4U Fiber Optic Distribution Box

Pull Out Fiber Optic Distribution Box

ODF Cable Termination Patch Panel
