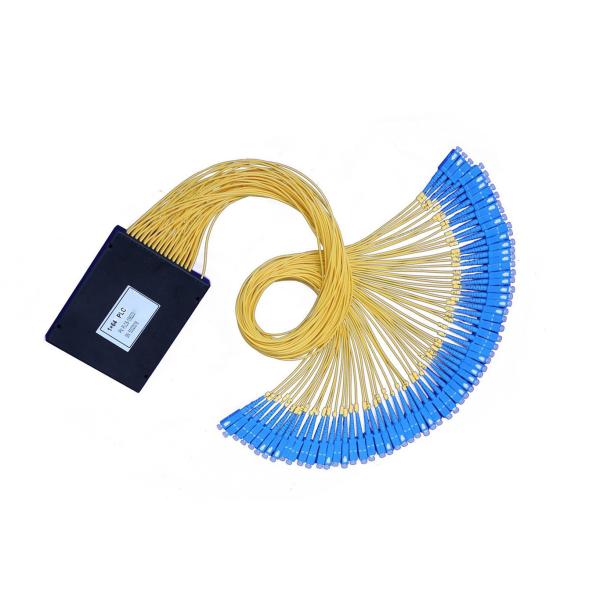

1X64 Fiber Optic PLC Splitter FTTH Splitter for FTTH Gpon CATV Applications

Product Categories

Shenzhen YHT Broadband Equipment Co. Ltd

Contact Now

Name: 1X64 Fiber Optic PLC Splitter FTTH Splitter for FTTH Gpon CATV Applications
Brand: CSYHT
Price: 25 USD

Brand Name : CSYHT

Model Number : 1X 64 splitter

Certification : IOS

Place of Origin : China

MOQ : >150

Price : USD 25-80 Unit

Payment Terms : L/C, T/T

Supply Ability : 50000/day

Delivery Time : 5-8 days

Packaging Details : Carton

Operation Temperature : -40~+85 ºC

Storage Temperature : -40~+85 ºC

Fiber Type : G.657A

Contact Now

Specification:
Table 1 - 1×N PLC optical splitter

Parameter	Unit		1x2	1x4	1x8	1x16	1x32	1x64
Parameter	Standard Grade
Insertion Loss	Max	dB	4.2	7.2	10.5	13.7	17.0	20.6
Channel Uniformity	Max	dB	0.6	0.8	1.0	1.6	1.6	2.0
Polarization Dependent Loss	Max	dB	0.2	0.3	0.3	0.3	0.3	0.5
Operation Wavelength	nm		1260~1650
Return Loss	MIN	dB	55(Premium Grade) / 50(Standard Grade)
Directivity	MIN	dB	55
Operation Temperature	ºC		-40~+85
Storage Temperature	ºC		-40~+85
Fiber Type	-		G.657A
250um Basic type PLC splitter	Dimension (HWL)	mm	4440			4750	4750	41260
900um Steel tube type PLC splitter			4760			41260	62080	640100
Cassette type PLC splitter			1080100			1880120	18115140	18115140

Note:
1. Above parameter without fiber optic connectors;
2. Each connector will add loss 0.2dB.

1X64 Fiber Optic PLC Splitter FTTH Splitter for FTTH Gpon CATV Applications

1X64 Fiber Optic PLC Splitter FTTH Splitter for FTTH Gpon CATV Applications Images
