FTTB Network 1U Terminal Optical Fiber Cable 12cores Rack Mounted

Product Categories
Shenzhen YHT Broadband Equipment Co. Ltd
Contact Now

FTTB Network 1U Terminal Optical Fiber Cable 12cores Rack Mounted

  • 1
  • 2
  • 3

Brand Name : CSYHT

Model Number : ODF-RSDZ-17

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 200 pcs

Price : 12.5USD/pcs

Payment Terms : T/T

Supply Ability : 5000pcs per month

Delivery Time : 30days

Packaging Details : 5pcs / carton, 47*32*35cm/carton; 14.4kg/carton

Material : Cold-rolled Steel

Product name : Patch Panel

Color : Black or white

Application : FTTH FTTB FTTX Network,Telecom

Type : draw type fiber optic path panel,1U

Dimension : 482.6x 255x44mm

Port : 12

Adapter type : LC,SC

Installation : Rack mount

Adapter : SC,LC

Working temperature : -40℃~65℃

Tray : 12 cores per tray if splicing tube ONE layer per slot

Contact Now

SC/FC/ST/LC 12 CORES rack mouted OPTICAL FIBER Cable 1 U Terminal BLACK Patch Panel

Features:

  1. Standard size, light weight and reasonable structure
  2. Slide out drawer for easy cable management,drawing type of patch panel
  3. FC, SC, ST, LC adapter patch panel for option, easy to replace
  4. Front access panel design for easy operation
  5. Suitable for 19’’ or 23’’ standard optic distribution cabinets,distribution frame
  6. Max. capacity 96 fibers, one splice trays of 12 fibers (OST-005B)
  7. 4 fiber cable entry ports at rear side of patch panel
  8. White or black color fiber optic cable patch panel
  9. Material: Cold-roll steel patch panel

FTTB Network 1U Terminal Optical Fiber Cable 12cores Rack Mounted

THE EXW PRICE IN THIS PAGE IS BASED ON VERSION ODF-RSDZ-17/12F 12 cores/FIBERS version dispatch panel

Specification:

Model Fiber Quantity Height Dimension(mm) Splice tray
ODF-RSDZ-17 12 1U 482.6x 255x44 1
ODF-RSDZ-17 24 1U 482.6x 255x44 2
ODF-RSDZ-17 48 1U 482.6x 255x44 4
ODF-RSDZ-22 96 2U 482.6x 255x86 4

FTTB Network 1U Terminal Optical Fiber Cable 12cores Rack Mounted

Application:

Telecommunications,termination cable patch panel

Fiber to the home (FTTH)

LAN / WAN

CATV

It is made of 1U or 2U 19’’ cold-roll steel box, with plastic splice tray inside, suitable for pigtail, ribbon and bunch cable distribution. And it has aluminum sliding fitting with self-locking functions prevent the drawer from falling when moved.

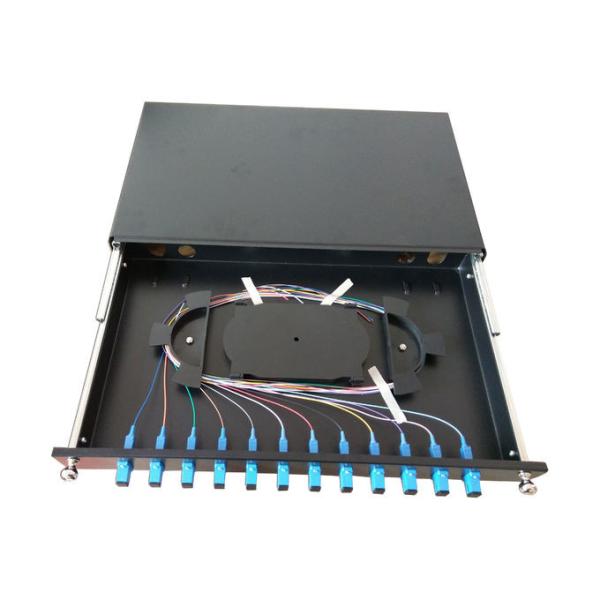

1, ODF-RSDZ-17/12F 12 cores dispatch panel

FTTB Network 1U Terminal Optical Fiber Cable 12cores Rack Mounted

3, ODF-RSDZ-17/48F 48 cores dispatch panel

FTTB Network 1U Terminal Optical Fiber Cable 12cores Rack Mounted

4, ODF-RSDZ-22/96F

FTTB Network 1U Terminal Optical Fiber Cable 12cores Rack MountedFTTB Network 1U Terminal Optical Fiber Cable 12cores Rack Mounted

FTTB Network 1U Terminal Optical Fiber Cable 12cores Rack Mounted
